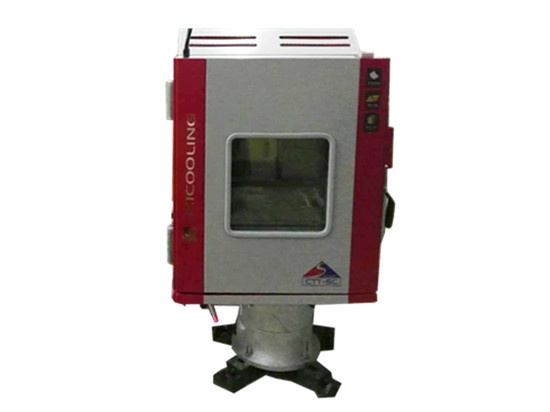

Single-Axis Rate Turntable with Temperature Chamber

Function

This device provides the benchmark of position and rate for the tested load, it’s used for static testing and calibration of inertial original components, inertial navigation systems.

The temperature chamber provides the test environment for the tested load with low and high temperature.

Axis Orientation

Vertical or Horizontal

Payload Weight

5-40kg

Dimension of Table Surface

200-500mm

Magnetic Leakage

≤2 Gauss（20mm from the table surface）

Material of The Table

Stainless Steel

Table flatness

0.015mm

Table Wobble

0.02mm

Motion Error of Main Axis

±5″

Angular freedom

Continuous

Position Accuracy

±2″~±180″

Position Resolution

0.5″

Rate Range

±0.005°/s~±3600°/s

Rate Resolution

0.001°/s

Peak Acceleration

5000°/s²

Conductive Slipring

40 rings/3A

Remote Control Interface

RS232/RS422

Inside Dimension

600mm×700mm×800mm（L×W×H）

Temperature Range

-55℃+90℃

Temperature Stability

≤±0.5℃

Temperature Uniformity

≤±2.0℃

Temperature Deviation

≤±2.0℃

Rate of the Temperature Change

≥2.0℃/min

Running Noise

≤65dB（1m in front of the box）

Others

The technical parameter of the temperature chamber can be adjusted by user’s requirements.
The remote control interface can be adjusted by user’s requirements；
The quantity of conductive slip ring can be adjusted by user’s requirements；
The dimension of table can be adjusted by user’s requirements；
Technical parameter can be adjusted by user’s requirements.
