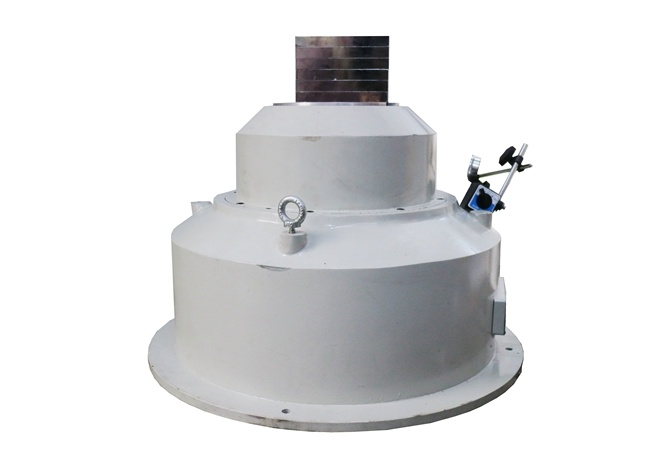

Angular Vibration Generator

Function

·       This device has the function of sinusoidal angular vibration with high frequency and large angular acceleration, it can increase the function of position and movement rate. It provides the benchmark of precise sinusoidal angular motion for tested load and used for dynamic testing and calibration of inertial original components, inertial navigation systems.

Payload Weight

2-10kg

Load Inertia

0.1kgm²

Dimension of Table Surface

200mm

Material of The Table

Super-hard Aluminum

Table flatness

0.01mm

Table Wobble

0.01mm

Motion Error of Main Axis

±2″

Angular freedom

Continuous

Peak Angular Acceleration

20000°/s²

Sinusoidal Vibration Frequency

0.1Hz～200Hz

Harmonic Distortion

≤2%

Position Accuracy

±3″

Position Resolution

0.36″

Rate Range

±0.005°/s~±400°/s

Rate Resolution

0.001°/s

Conductive Slipring

40 rings/3A

Remote Control Interface

RS232/RS422

Other

The remote control interface can be adjusted by user’s requirements；

The quantity of conductive slip ring can be adjusted by user’s requirements；
The dimension of table can be adjusted by user’s requirements；
Technical parameter can be adjusted by user’s requirements.
