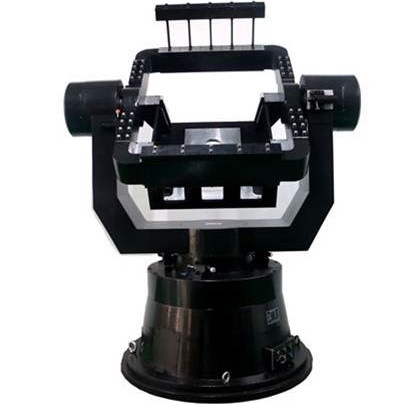

Two-Axis Position Rate Turntable

Two-Axis Position Rate Turntable
	Inner Axis（pitch）	Outer Axis（azimuthal）
Function	This device has the function of position and rate, it can provide the benchmark of precise single and two axis positioning and rate for the tested load, it’s used for static testing and calibration of inertial original components, inertial navigation systems.
Axis Orientation	Vertical（TU）
Payload Weight	5-40kg
Dimension of Table Surface	200-500（mm）
Table flatness	0.015mm
Perpendicularity of Two-Axis	±3″
Motion Error of Main Axis	±3″	±2″
Angular freedom	Continuous	Continuous
Position Accuracy	±3″	±2″
Position Resolution	0.5″	0.5″
Rate Range	±0.005°/s~±400°/s	±0.005°/s~±600°/s
Rate Resolution	0.001°/s	0.001°/s
Peak Acceleration	200°/s²	300°/s²
Conductive Slipring	40 rings/3A
Remote Control Interface	RS232/RS422
Other	The remote control interface can be adjusted by user’s requirements； The quantity of conductive slip ring can be adjusted by user’s requirements； The dimension of table can be adjusted by user’s requirements； Technical parameter can be adjusted by user’s requirements.
